Mitsubishi Electric heat pumps: Ecodan for UK homes

Mitsubishi Electric's Ecodan is a market-leading brand of heat pumps built in the UK, and the range most UK householders encounter first when they search for an air source heat pump by name¹. The units are air-to-water heat pumps providing hot water and space heating to domestic and commercial buildings, and the current R290 models are listed with A+++ heating efficiency at 35°C, a guaranteed operating range down to -25°C ambient temperature, and water temperatures up to 75°C².

The range runs from domestic monobloc units at 6.0kW, 8.5kW and 11.2kW through to larger commercial plant, and the company states it has applications for heat pumps in buildings dating back 80 to 100 years, with heat pumps suitable for 85 to 86% of houses in the UK⁵. Manufacturing sits at Livingston in Scotland, where more than 1,100 people produce thousands of Ecodan units a year for the UK and European markets⁷.

For a household, the independence question is straightforward. An Ecodan replaces gas or oil combustion with electricity, so it removes the gas connection and the gas supplier but substitutes a larger electricity demand, and it keeps a dependence on the grid, on a manufacturer's controls and app, and on an installer network for warranty terms. What follows sets out the range, the specifications, the configurations, the UK manufacturing position and the support arrangements.

The Ecodan range: domestic units to commercial plant

Ecodan is a range of air source heat pumps within Mitsubishi Electric's wider renewable heating portfolio, and the units are air-to-water heat pumps used for hot water and space heating in domestic and commercial dwellings². The domestic end of the range is where most UK households sit. The R290 models are listed at 8.5kW and 10kW, and the R32 monobloc units at 6.0kW, 8.5kW and 11.2kW, with a 14.0kW Zubadan option³.

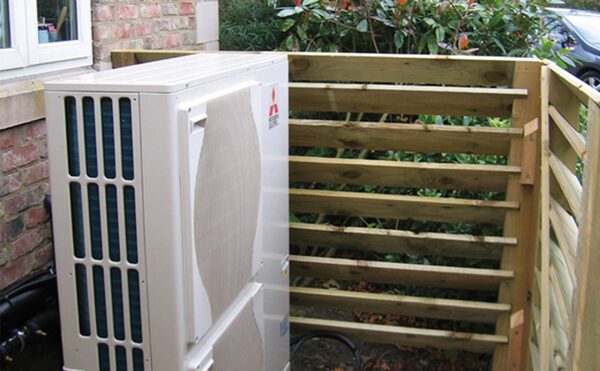

Physical size matters for siting. Ecodan units are positioned outside the building, with a typical width between 800 mm and 930 mm and a typical height between 600 mm and 930 mm². The R290 models are available in standard and coastal protection versions, in single and three phase, with pre-plumbed and packaged cylinders³.

The commercial end of the range extends well beyond domestic outputs. Mitsubishi Electric's Ecodan units are described as air-to-water heat pumps serving both domestic and commercial buildings, and the company's packaged Hydrodan solutions are designed to link into a heat network and upgrade low temperature heat into usable heating and hot water for apartments². Larger installations exist: St Andrew's School runs four 14kW Ecodan units¹³.

Key specifications: -25°C operation, 75°C flow and A+++ efficiency

The headline figures are consistent across the R290 range. Mitsubishi Electric states that heat pumps are designed to work in temperatures down to -25 degrees, and the R290 models at 8.5kW and 10kW each carry a guaranteed operation range down to -25°C ambient temperature⁴. The same models are listed with A+++ heating efficiency at 35°C and A++ at 55°C, on a scale running from A+++ to D³.

Flow temperature is the figure that decides whether a retrofit is straightforward. The R290 models achieve water temperatures up to 75°C, which Mitsubishi Electric describes as suitable for energy storage, and the QUHZ Ecodan delivers water at 70°C to a packaged 200 litre thermal store⁴. Higher flow temperatures mean existing radiators can often stay in place, though the efficiency class drops from A+++ at 35°C to A++ at 55°C, so the two figures pull against each other.

Older official guidance on the hybrid Ecodan gives a bivalent temperature of -7 and an SSHEE range of 125 to 128 at 55°C under average climate conditions, figures that belong to an earlier R410A generation and are not comparable with the current R290 listings¹⁵.

What this means in practice is that the specification supports operation through a UK winter, and that the flow temperature available widens the set of homes a retrofit can serve. It does not remove the need for a heat loss assessment, and it does not change the fact that a heat pump's running efficiency depends on flow temperature and emitter sizing rather than on the badge. Independent guidance notes that heat pumps can work with radiators or underfloor heating, but some types can work without either¹⁶.

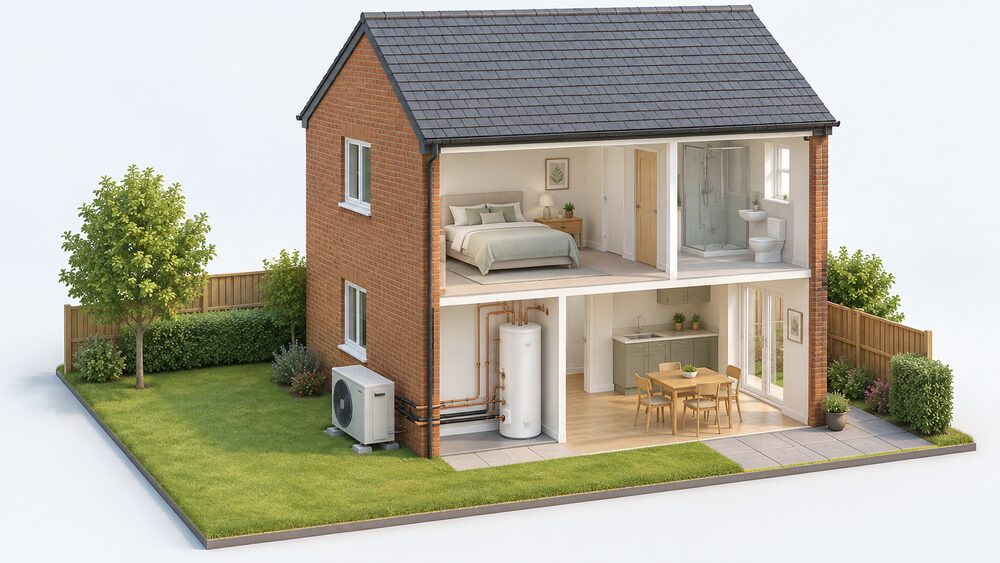

Monobloc, split and hybrid: which configuration fits which home

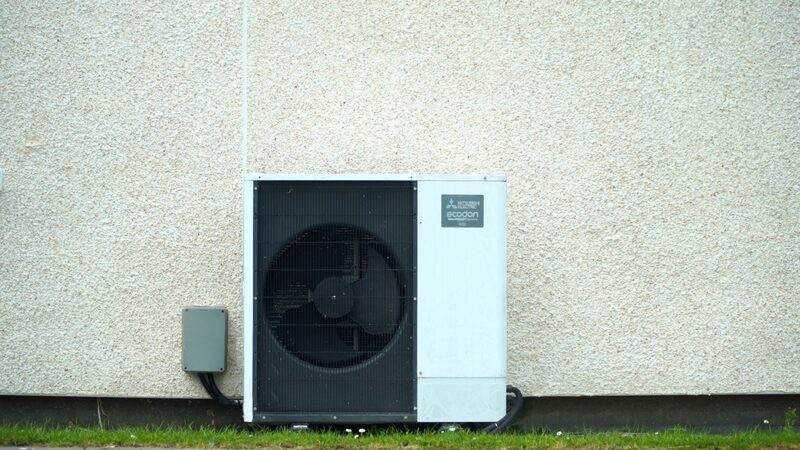

Ecodan comes in more than one physical arrangement, and the choice affects installation work as much as performance. The R32 Ultra Quiet PUZ Monobloc is a self-contained unit that requires only water and an electric connection, which keeps refrigerant work inside the factory and simplifies the outdoor installation¹¹. The Zubadan PUZ Monobloc uses R32 refrigerant and advanced technologies to deliver improved efficiencies, in a 14.0kW output¹¹.

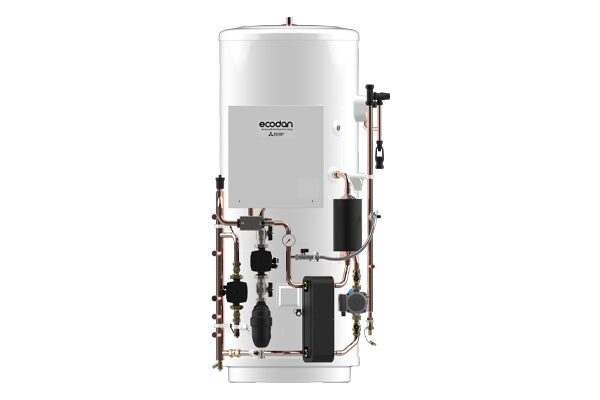

Cylinder choice sits alongside the outdoor unit. The FTC6 Monobloc pre-plumbed slimline cylinder is available in 150L and 170L, with an optional two-zone energy efficient space heating control, MEL Cloud Wi-Fi connectivity, and a hybrid function for use with conventional boilers¹¹. The pre-plumbed standard cylinder comes in 150L, 170L, 210L, 250L and 300L sizes¹¹. Packaged cylinders are designed to integrate with Ecodan monobloc air source heat pumps¹¹.

Hybrid is the configuration that matters most for households not ready to remove a boiler. Mitsubishi Electric states that hybrid Ecodan heating systems work in tandem with an existing boiler, and one case study describes an 11kW Ecodan working with the existing gas boiler¹. The same case study notes the renewable system had to be able to work independently of the existing gas boiler and also utilise the existing radiators¹⁷.

Made in Britain: Livingston manufacturing and UK investment

Ecodan is manufactured in the UK. Mitsubishi Electric describes the range as made in Britain, to British Standard, for British homes, and as the market-leading brand of heat pumps built here in the UK¹⁰. The Livingston site in Scotland employs more than 1,100 people and produces the market-leading Ecodan range of air-to-water heat pumps, with thousands of units manufactured each year for both the UK and European markets⁷.

The company states it produces all the crucial components of its heat pumps itself, including the heat exchanger, compressor and controls, and describes itself as a UK manufacturer on that basis¹⁸. The Livingston facilities are described as becoming the Ecodan manufacturing plant for Europe, and the site is also a European research and development centre for air source heat pumps¹⁹.

The site hosts a dedicated training centre providing hands-on courses for installers and engineers from across the UK, opened at the factory complex in Livingston⁷. Mitsubishi Electric offered free training at the centre for installers completing Part 2, 3 and 5 training in the design and install of Ecodan heat pumps, or attending a practical hands-on workshop, for all Scottish registered installation companies²¹.

For a household, UK manufacturing shortens the supply chain for parts and service and keeps the engineering base inside the same regulatory and standards environment as the installation. It does not change the fuel position: an Ecodan runs on electricity, so the household remains connected to the grid and to an electricity supplier, and the unit's controls and monitoring depend on the manufacturer's cloud service.

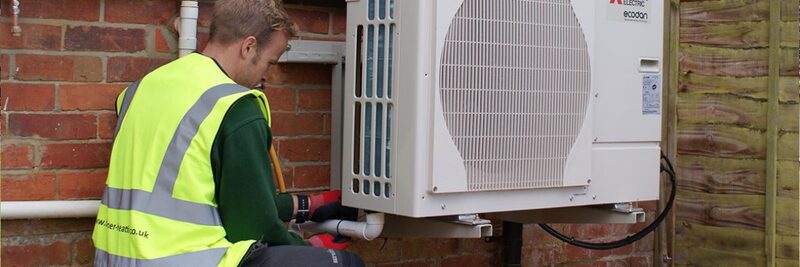

Installers, training and where to buy Ecodan

Mitsubishi Electric works through a network of heating installers rather than selling direct to householders. The company states it has a vast network of reliable and national heating installers, who it provides with comprehensive training on installing and maintaining Ecodan heat pumps, and that there are thousands of nationwide Accredited Ecodan Installers, found by entering a postcode and selecting a local company⁹. Support engineers are available to Ecodan installers and Accredited Installers for warranty claims²².

The installer's status matters beyond the fitting itself, because warranty terms depend on it. Mitsubishi Electric states plainly that a homeowner's warranty will depend on the installer's status with the company²². That makes the Accredited Installer route the one that carries the strongest guarantee position, and it makes the installer relationship a continuing one rather than a one-off transaction.

Training is a deliberate part of the model. The Livingston training centre runs hands-on courses, and the free training offer for Scottish registered installation companies covered design and installation of Ecodan heat pumps²¹. Mitsubishi Electric also provides a comprehensive range of ongoing maintenance programmes, technical services and training as part of its service and support offering⁸.

On availability, the R290 models are listed for purchase through Mitsubishi Electric UK, and the 10kW and 8.5kW units are described as made in the UK³. Prices are not published by the manufacturer for a supplied and fitted installation; quotes come from installers after a survey. Mitsubishi Electric's pre-sales technical team can assist with design, feasibility and purchase costs, and the company supports housing developers through preparation, product selection, site visits and pre-construction information²³.

Warranty, maintenance plans and homeowner support

The Mitsubishi Electric Homeowner Guarantee is the warranty scheme for Ecodan owners, and its terms are conditional rather than fixed. The length of guarantee depends on what Ecodan product is registered, and the warranty depends on the installer's status with Mitsubishi Electric²⁴. Completing the Ecodan Guarantee form is highly recommended, and registration brings access to extended warranties, professional service support and regular system maintenance²².

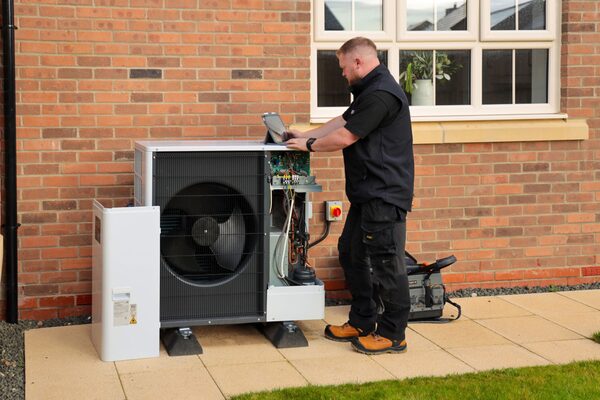

Servicing is a condition, not an option. Mitsubishi Electric states that an Ecodan service is due every year to maintain the warranty²⁵. Service and maintenance plans are available for homeowners, described as helping to maintain the warranty and offering an extra layer of protection and care for the heating system, with a 3 Diamond Maintenance Cover level²⁶.

The service scheme has defined boundaries. Cover applies to a Mitsubishi Electric Ecodan air source heat pump, a Mitsubishi Electric cylinder, or a third party cylinder meeting minimum heat transfer requirements, plus system components and connections originally installed²⁷. Mitsubishi Electric reserves the right to use new or reconditioned genuine parts as spare parts, and chargeable parts are billed at the then current list price less any discount per the agreed cover level²⁷. Replacement parts and workmanship are guaranteed for one year from the date of installation by the engineer²⁷.

Contact runs through the Ecodan Homeowner Helpline on 0161 866 6064, listed across the homeowner pages, with the aftersales team on 0161 866 6089⁹. Service enquiries can go to ecodan.service@meuk.mee.com, or by post to MELSmart Maintenance, Mitsubishi Electric Europe B.V., Unit 12, Mercury Park, Mercury Way, Trafford Park, Manchester M41 7LY¹⁸. Mitsubishi Electric Europe B.V. is a Netherlands limited liability company with a registered English branch, number FC019156, BR003391²⁷.

One safety matter sits outside the warranty. The Ecodan heat pump appears on the Electrical Safety First product recall list as a voluntary recall from consumers by the manufacturer². Owners of affected units should check the recall notice directly rather than relying on the general warranty position.

Mitsubishi Electric as a company: size, standing and commitments

Mitsubishi Electric is a large multinational with a substantial UK manufacturing footprint, and its standing among installers is measurable. In a survey of UK air source heat pump installers published in June 2026, Mitsubishi Electric was recognised as the country's most trusted air source heat pump manufacturer, ranking first²⁹. The company also appears in independent statistics on heat pump deployment, where highly efficient QUHZ Ecodan air source heat pumps are among the equipment supplied³⁰.

The brand carries Quiet Mark certification across several models. The Ecodan R290 units at 8.5kW and 10kW are listed on the Quiet Mark brand page for Mitsubishi Electric, and the R290 range appears in Quiet Mark's round-up of the quietest heat pumps on the market¹⁰. Quiet Mark is an independent certification body, so these listings are third-party rather than self-declared.

On decarbonisation, Mitsubishi Electric states an aim to achieve Net-Zero by 2050, and describes its Ecodan range as part of that journey¹. The company has been designing and developing air source heat pumps for UK conditions for over a decade, and supports housing developers in meeting requirements under the Future Homes Standard²³. Its UK operation spans residential heating products, developer site services and after-sales packages including extended system warranty and maintenance packages³².

For a household weighing independence, the company's scale and UK manufacturing base reduce the risk of an orphaned product, and the installer network provides a route to service. The dependencies that remain are the grid, an electricity supplier, the manufacturer's controls and cloud service, and a continuing relationship with an installer whose status determines the warranty. A comparison with the main competing brand is at Mitsubishi vs Daikin air source heat pumps, and the wider market is covered in heat pump manufacturers supplying UK homes.
