Tesla Powerwall 3 Compared With Powerwall 2

The Powerwall 3 is the unit Tesla now sells in the UK, and the Powerwall 2 is the one thousands of British homes already have on the wall. The difference that matters most is architectural: the Powerwall 3 has a built-in solar inverter and system controller, while the Powerwall 2 was AC-coupled and needed a separate solar inverter¹. Tesla states plainly that the Powerwall 3 has more power output, a built-in solar inverter and better backup performance than the Powerwall 2².

Both store 13.5 kWh, and both carry a 10-year warranty, but the conditions attached to that warranty are not the same, and the Powerwall 3's depends on a live internet connection³. Tesla's own UK pricing page quotes £7,495 with 0% VAT for a Powerwall 3 including the unit and basic installation⁵.

Powerwall 3 vs Powerwall 2: the short answer

For a household choosing today, the Powerwall 3 is the current product and the Powerwall 2 is the older one. Tesla's own comparison of the two generations lists the Powerwall 3's advantages as more power output, a built-in solar inverter and better backup performance². The Powerwall 2 was AC-coupled and required a separate solar inverter, which meant an extra box on the wall and an extra conversion step between the panels and the battery⁸.

The practical consequence is that a Powerwall 3 installation can absorb solar directly. Tesla states the unit comes with a built-in solar inverter and works with or without solar panels, storing energy from the panels or the grid². A Powerwall 2 owner adding storage to an existing array keeps the array's original inverter and couples the battery on the AC side.

There is one hard compatibility limit. Tesla states that a Powerwall 3 cannot be installed on top of a current Powerwall 2, so an existing Powerwall 2 owner cannot simply add the newer unit to the same system¹⁰. That is the single most important fact for anyone with a Powerwall 2 already installed and wondering whether the upgrade is a bolt-on. It is not.

Both units are rated IP67 for water and dust resistance in the Powerwall 3's case, and Tesla lists water and dust resistance for the Powerwall 2 as well¹. Both are designed for indoor or outdoor siting, and the Powerwall 3 weighs 130 kg¹.

Specifications side by side: capacity, power and efficiency

The headline capacity is unchanged between generations at 13.5 kWh, and Tesla describes that as a usable figure against a nominal capacity closer to 15 kWh¹. Independent guidance lists the Tesla Powerwall at 13.5 kWh with a 10-year warranty⁴. The Powerwall 3 Expansion unit is also listed at 13.5 kWh usable, and Tesla gives the Powerwall 3 a nominal capacity of 13.5 kWh per unit; both figures are given here as published⁵.

The power gap is the one most owners notice. Tesla quotes up to 11.04 kW of output for the Powerwall 3 against 7 kW peak for the Powerwall 2, and describes continuous power output rising from 5 kW to 11.04 kW with load start capacity moving from 106 A to 185 A¹. That matters for homes with an electric shower, an induction hob and a heat pump all wanting current at once.

Efficiency is quoted at up to 97% for the Powerwall 3, with the integrated solar inverter at 97.5%⁶. Round-trip losses still exist, and the round-trip efficiency page explains where they arise.

The built-in inverter: what changed from AC-coupled Powerwall 2

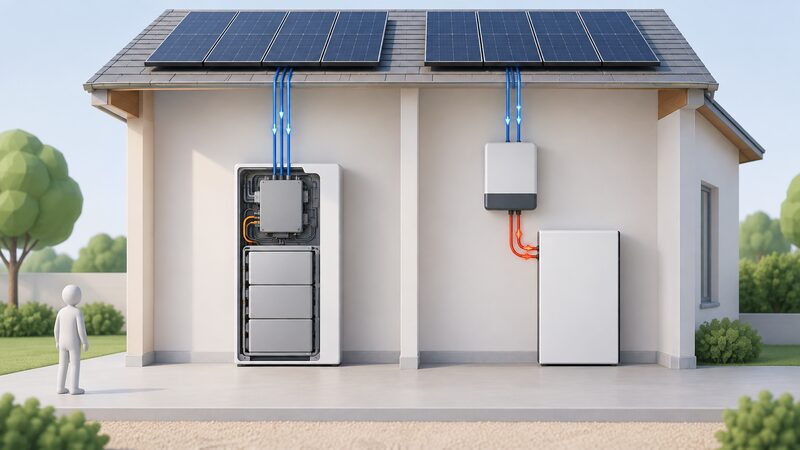

The Powerwall 2 was AC-coupled and required a separate solar inverter⁸. The Powerwall 3 has an integrated inverter and system controller, and Tesla describes it as featuring an integrated hybrid solar inverter¹. That single change reshapes the installation.

Because the inverter is inside the battery, a Powerwall 3 can take solar strings directly. Tesla states the unit supports up to 20 kWp of connected solar on a single unit, with 6 MPPT inputs, and that modern integrated systems such as the Powerwall 3 manage the PV to battery charge ratio automatically across multiple MPPT inputs¹². The datasheet lists 3 MPPTs, while Tesla's earlier announcement refers to 6 MPPT strings the new inverter claims; the two figures are given as published³.

For a household, the difference is fewer boxes and one fewer conversion. In an AC-coupled system the solar inverter converts DC from the panels to AC, and the battery converts it back to DC to store it, then back to AC to use it. A DC-coupled arrangement with an integrated inverter removes at least one of those conversions. The AC-coupled and DC-coupled battery systems page sets out the trade-offs in full.

The integrated design also means the battery's inverter rating governs how much solar can be connected. Tesla states the inverter rating is fully software-configurable between 3.68 and 11.04 kW with no hardware changes required⁹. That configurability is unusual and is what allows the same unit to serve a small array and a large one.

Backup during a power cut: what each can and cannot do

Tesla states that the Powerwall 3 stores energy from solar panels or the grid and activates instantly when a power cut happens, and lists quick backup transition among its features¹⁰. During an outage the system automatically switches to stored energy, keeping essential appliances such as a refrigerator, heating system or lights running¹⁶. A backup reserve can be held for emergencies¹⁷.

The Powerwall 2 can also keep a solar system working and provide backup in a power cut, a capability Tesla announced for it in 2019¹⁸. So backup is not new. What changed is how much of the house can be carried and how the system is wired.

Whole-home backup is possible but conditional. Tesla answers the question directly: yes, depending on how much energy the home uses, and one or more Powerwalls may be needed². During a power cut the Powerwall 3 can deliver up to 5 kW of power at any one time, which is the figure to compare against a home's simultaneous load¹⁹. A household running an electric shower, an oven and a heat pump together will exceed that; one running lights, broadband and a fridge will not.

Three-phase is where the UK position is unsettled. Tesla states one Powerwall 3 per phase plus three expansion packs per unit, and lists three-phase power cut protection support as coming soon²⁰. Independent guidance states that one phase can be backed up and that three-phase backup is not currently available on the Tesla system in the UK⁹. A three-phase Powerwall 3P went on sale in Germany on 23 April 2026 with no UK release date announced¹³. The battery backup in a power cut page covers the wiring principles.

Scalability: expansion packs, stacking and three-phase limits

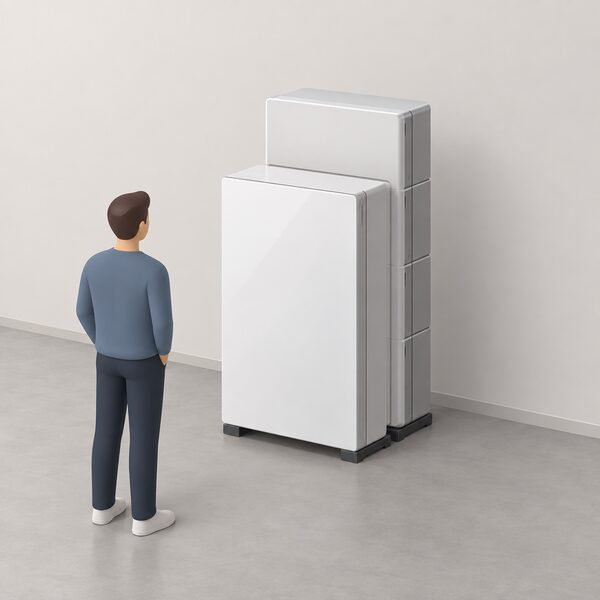

Tesla lists scalability of up to 4 Powerwall 3 units, and the datasheet gives power scalability of up to 4 Powerwall 3 units supported¹. Energy scalability runs to up to 3 Expansion units for a maximum total of 7 units, with stacking capability of up to 3 Expansion units behind a Powerwall 3 on floor mount only³. Tesla also quotes a total of 54 kWh where three additional packs are installed².

The Powerwall 2 was itself stackable, listed at up to 10 units with up to 13.5 kWh maximum addition per unit¹. The Powerwall 3's headline unit count is lower, but each unit can carry expansion packs that add capacity without duplicating inverter capacity⁶. That is the design logic: one inverter serves a stack of batteries rather than each battery bringing its own.

Tesla states that no additional grid permission is needed for expansion packs². That is a meaningful administrative point, because a larger system can otherwise trigger a network operator application. The G98 and G99 page explains when permission is required.

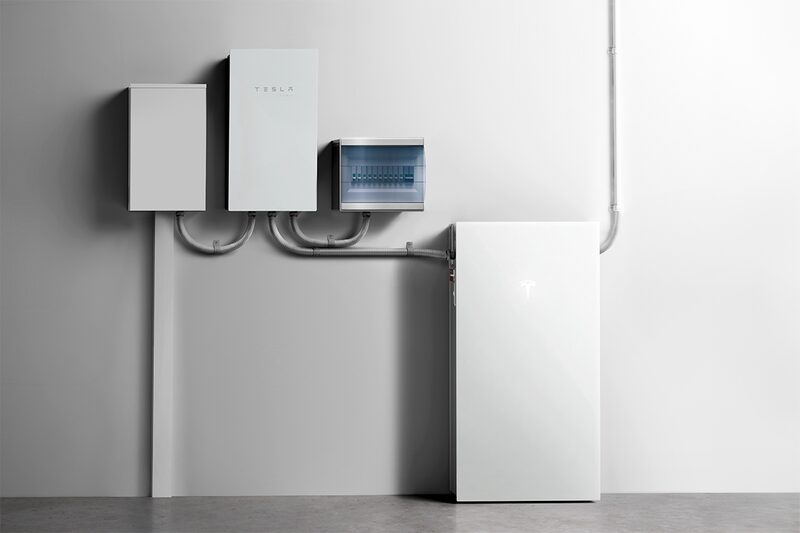

Mounting is flexible: internal or external, wall-mounted or floor-mounted, with additional units and expansion packs mounted to the front of a Powerwall 3²⁰. Expansion packs are floor mount only³. The modular and stackable battery systems page covers the general principles of expanding capacity later.

Cost, payback and the 0% VAT position

Tesla's UK pricing page quotes £7,495 with 0% VAT, described as including the unit and basic installation, with possible additional costs based on the home setup or electrical upgrades⁵. Independent guidance puts a Powerwall 3 at around £6,700 to £7,600 per battery unit depending on installation requirements²¹. Both figures are given because they measure slightly different things: one is a headline installed price, the other a per-unit range.

On cost per usable kilowatt-hour, Tesla states the installed price gap between the Powerwall 3, Sigenergy SigenStor and Fox Evo is under 4%, and that the Powerwall 3 sits around 3% higher than the Fox Evo⁹. That is a maker's comparison of its own product against rivals, and it is the only cost-position figure available here.

Tesla claims the Powerwall 3 stores low-cost electricity for when prices spike, cutting bills by up to 50%². That is a maker's claim, not an independently verified saving, and it depends on the tariff, the load profile and how the battery is dispatched. The system stores energy when rates are lower and uses it when prices rise during peak hours, and it can charge from the grid during off-peak hours as well as from solar¹⁶. It can also export stored energy back when prices surge².

Payback depends on the spread between import and export prices, the household's consumption and the tariff. The battery payback and savings page explains how the numbers are worked out, and the home battery cost page covers pricing across the market.

Warranty: 10 years, but only with an internet connection

The Powerwall 3 carries a 10-year warranty on the datasheet, and independent guidance lists the Tesla Powerwall at 13.5 kWh with a 10-year warranty³. Good Energy lists leading product warranties of 25 years for solar, 12 years for the inverter and 10 years for the Powerwall 3²².

The condition is the part owners miss. Tesla states that to secure the full 10-year warranty for Powerwall 3, it must be reliably connected to the internet to allow remote firmware upgrades from Tesla⁷. If an internet connection is not established, or is interrupted for an extended period and Tesla is unable to contact the owner, the warranty may be limited to 4 years⁷.

Connectivity options are Wi-Fi on 2.4 and 5 GHz, Ethernet and cellular LTE/4G, so a household without reliable broadband is not automatically excluded³. The cellular option is the fallback that keeps the warranty condition satisfiable.

The Powerwall 2 warranty terms differ in structure. Tesla lists 10 years for electronic components, 10 years or energy throughput whichever comes first for battery modules, unlimited charging cycles, and a permanent internet connection required as a special guarantee condition²³. The Powerwall 2's electronic component cover applies in case of defect²³.

The home battery warranties page covers retained capacity, throughput limits and conditions across the market.

Cold weather, siting and day-to-day ownership

Cold weather affects the two generations differently. Older Powerwall 2 units throttle their charge rate near freezing, while the Powerwall 3 forecasts temperature swings and pre-heats or pre-cools the cells to hold them in their optimal range²⁴. That is a maker's description of its own products, and it points to a real operational difference in a British winter.

The Powerwall 3 is listed as flood and dust resistant, with an IP67 rating quoted in one source and an IP55 enclosure rating on the datasheet¹¹. It can be installed internally or externally, wall-mounted or floor-mounted²⁰. The battery siting and location page covers where a unit can go.

Day to day, the system is managed through the Tesla app, which Tesla describes as giving full control over the home's energy consumption with real-time tracking of energy generated, stored and used, plus insights and adjustable settings¹⁶. The app lets the owner manage the Powerwall from anywhere⁹. Tesla's own guidance quotes a 4.4 star Apple App Store rating for the app⁶.

The system stores excess solar generated during the day for use at night or in cloudy weather, and can charge a Tesla vehicle after sunset from stored solar¹⁶. Rate Plan Charging can reduce home vehicle charging costs when a Powerwall and a compatible Wall Connector are installed, with Time-Based Control built around off-peak, mid-peak and peak periods²⁶.

On independence, the picture is mixed. The battery reduces reliance on imported electricity at peak times and keeps essentials running in an outage, but it remains tied to the grid for charging, to a supplier for tariff signals, to Tesla for firmware and warranty compliance, and to the Tesla app for control. Tesla Energy Ventures was granted a GB electricity supply licence by Ofgem, effective 11 March 2026, which points to a future where the same company supplies the electricity as well as the hardware¹³. Tesla states the Powerwall 3 does not currently have a UK virtual power plant option⁹, though Tesla operates a virtual power plant programme elsewhere²⁷. The home batteries and household energy independence page examines what that dependence means in practice.
