Viessmann Heating Controls and the ViCare App

Viessmann sells its own control chain rather than leaving heating control to third parties. The ViCare app is the front end, free to download and compatible with almost all iOS and Android mobile devices¹. Behind it sits either a Vitoconnect gateway or an appliance with integrated WLAN, and in front of it sit ViCare room controls, including thermostatic radiator valves that Viessmann says enable straightforward control of individual rooms via app or voice command².

The practical question for a household is what that chain controls and what it depends on. Viessmann describes the app as controlling heating systems, with the thermostats also operable manually on the device; for the full range of functions, including schedules, remote control and smart automation, the maker recommends control through the app³. Remote operation runs over WiFi, with the command received and processed by the control centre⁴.

What the ViCare app does, and what sits behind it

The ViCare app is the control layer for a Viessmann heating system. Viessmann describes it as offering innovative control options after connection to the web, regardless of where the householder happens to be⁷, and as a way to create individual heating schedules and monitor consumption and room climate⁷. The app is free, and Viessmann states it is compatible with almost all iOS and Android mobile devices¹.

The connection is the part that varies. Viessmann describes the Vitoconnect as enabling heating system operation using the ViCare app⁸, and as the component that enables individual room control via the ViCare app, connecting the heating device to the internet and allowing ViCare Smart Climate components to be used³. It is compatible with new Viessmann heating systems and many existing appliances, connecting by cable with a plug-in power supply unit included⁹. For older systems, Viessmann states that the Vitoconnect can be connected via an Opto-Link cable to make the heating system internet-enabled³, and that all Viessmann heat generators with a Vitotronic control unit including the Optolink interface can be connected⁸.

There is a shortcut. Viessmann states that if you have a new Viessmann heat generator with integrated WLAN, you do not need Vitoconnect to be able to use ViCare components³. The gateway is therefore a bridge for older plant, not a universal requirement.

Room thermostat specification: 76mm square, TFT display, under 0.6°C accuracy

Viessmann's own room control hardware is the ViCare range, and the published specification detail for the room thermostat form factor in this market comes from Drayton's Wiser range, which shares the same physical shape and control figures. The Wiser room thermostat measures 76mm wide, 76mm high and 25mm deep, with a TFT display and touch buttons, no input or output terminals, and a wall bracket or desk stand mounting option¹⁰. Its stated control accuracy is under 0.6°C at 4°C per hour with the room thermostat¹¹, and the same figures repeat across the Wiser kits¹².

The accuracy figure matters more than the dimensions. A thermostat that holds within 0.6°C of its setpoint at a 4°C per hour rate of change is tracking a moving room, not just a steady one, which is the condition that matters in a house with solar gain or a heat pump running long cycles. Which? tests smart thermostats in a temperature-controlled chamber, measuring how accurately they record the temperature and how quickly relays respond¹⁵, which is the independent method against which any maker's accuracy claim should be read.

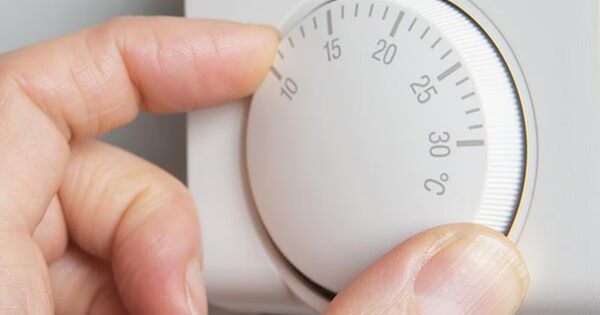

Setting temperatures: 18 to 21°C by day, lower at night

The published comfort guidance converges tightly. The Energy Saving Trust advises setting the thermostat to the lowest comfortable temperature, which for most people is between 18°C and 21°C¹⁶. British Gas Energy Trust gives the same range¹⁷, Cadent gives 18 to 21°C for damp and mould prevention¹⁸, and the Centre for Sustainable Energy gives 19 to 21°C for occupied rooms¹⁹. Ivie states that for healthy adults a setting between 18°C and 21°C is often cited as the ideal comfort and efficiency zone²⁰.

Night settings run lower. Smart Energy GB suggests a bedroom range of 16°C to 18°C²¹, and sets out a gradual adjustment plan of 21°C in week one, 20°C in week two and 19°C in week three²¹. The National Energy Action Warm Home Prescription pilot used a target of 21°C by day in the main living area and 18°C at night in the bedroom²².

The savings from moving within that band are the reason the band is quoted so often. Confused.com puts the saving from turning the thermostat down a single degree at £90 a year²³. Which? gives £85 to £90 a year in a typical home⁵. Uswitch gives as much as £90 a year²⁴, and separately around £60²⁵. The Energy Saving Trust estimates about a 10% saving on heating bills²⁶, and figures cited by Which? give £120 in Great Britain and £80 in Northern Ireland when turning down from 22°C to 21°C¹⁶.

Where the thermostat goes, and how many zones a house needs

Zoning is the point at which a single thermostat stops being enough. The Energy Saving Trust states that if you want to heat different rooms at different times of the day, zone controls do this automatically through separate programmable heating circuits for different parts of the house¹⁶. Home Energy Scotland lists the recommended control set as a time-controlled programmer, at least one room thermostat, thermostatic radiator valves if you have radiators, and a cylinder thermostat if the system has a hot water cylinder²⁷.

Viessmann's own zoning ceiling is stated on the ViCare floor thermostat: control of up to 6 heating zones³. The condition attached is that at least one ViCare climate sensor is required per heating zone to set the temperature value³, and that the floor thermostat must be configured with ViCare climate sensors during installation, with Viessmann recommending at least one climate sensor per room for best performance³. The climate sensor transmits its readings to the Vitoconnect or the Viessmann OneBase heating device by low power radio³.

For radiator-based zoning, ViCare thermostatic radiator valves provide room-by-room control through the app or by voice command². Viessmann also states that in larger rooms a climate sensor is recommended for precise temperature measurement³, which is the maker's own acknowledgement that a valve-mounted sensor reads the radiator's surroundings rather than the room.

What the ViCare app can and cannot control

The app's scope is heating. Viessmann describes heating systems as controllable with the ViCare app⁹, and lists remote control via the ViCare app as possible on the Vitodens 050-W¹. The Vitocal 222-G uses the Vitotronic 200 control unit with plain text and graphic display, with optional app control via ViCare with Vitoconnect⁹. The Vitocal 300-G datasheet notes that control of Viessmann ventilation units is possible²⁸.

Manual control remains available. Viessmann states that the thermostats can also be controlled manually on the device, and that for the full range of functions such as schedules, remote control and smart automation, control via the ViCare app is recommended³. The app supports numerous modes, including an assistance function with different switching times for each day and an on-the-go mode⁴.

What the app cannot do is operate without the chain behind it. The command issued over WiFi is received and processed by the control centre⁴, which means the boiler, the gateway or integrated WLAN, the home broadband connection and Viessmann's servers all have to be working. Local control at the appliance continues without any of that; scheduling from away, consumption monitoring and remote diagnostics do not. That is the dependence a household takes on when it adopts the app, and it is the same shape of dependence described in heating controls and energy independence.

How well Viessmann controls work in practice

The independent evidence on the brand is mixed and worth reading carefully. Which? gives Viessmann a three-star rating for its customer score⁶. That is a survey-based measure of how owners rate the brand, not a test of the controls themselves.

On the control hardware, the strongest independent signal is the testing method rather than a result. Which? puts smart thermostats in a temperature-controlled chamber, measuring how accurately they record the temperature and how quickly relays respond¹⁵, and uses a temperature-controlled chamber to check thermostat function and accuracy, ease of use, and privacy and security testing²⁹. Those are the dimensions on which any control range should be judged, and they are the dimensions on which a maker's own specification sheet is silent.

Viessmann's engagement with the trade press is a modest positive. Which? reports that Vaillant and Viessmann responded to its questions about Christmas boiler breakdowns and common breakdown causes³⁰. On flow temperature, Which? reports that Vaillant and Viessmann both suggest combi boiler owners have a 75°C flow temperature, and that Viessmann recommends combi hot water settings between 50°C and 60°C³¹. Those are the maker's own recommended settings, and they sit above the condensing range that independent guidance tends to favour.

Getting set up and serviced: installers, manuals and support

Viessmann's route to market for room controls runs through installers rather than retail. Viessmann states that ViCare single room control components are sold via partner stores and partners, that is, your installer³. That shapes both the buying process and the support path.

Installation requirements are narrow. Viessmann states that only the ViCare Smart Climate floor thermostat requires professional installation³, and that the floor thermostat must be configured with ViCare climate sensors during installation³. The radiator valves and climate sensors are positioned as householder-level components, though the maker recommends a climate sensor per room for best performance³.

Compatibility is broad. ViCare Smart Climate is described as compatible with all One Base heat generators, even with older devices via Vitoconnect³. The Vitoconnect itself works with all Viessmann heat generators with a Vitotronic control unit including the Optolink interface⁸, and is compatible with new Viessmann heating systems and many existing appliances⁹. For contractors, Viessmann states that remote maintenance of the heating system is possible with the ViGuide app⁸.

Fault diagnosis stays with the manufacturer. Which? reports that the Viessmann fault code checker explains an OC fault code on the Vitodens 100-W boiler as insufficient power being supplied³⁰. The maker's own fault code checker is the reference point for codes, and the F4 code is not one the independent sources in this market describe.
