Ideal Heating Controls and Thermostats

Ideal Heating sells thermostats, timers and accessories for the full range of its boilers and heat pumps, and the Halo family is the centre of that range¹. The Halo is a wireless programmable room thermostat designed specifically to work with an Ideal boiler, and the range splits by appliance type: Halo Combi models for combination boilers, Halo Heat and System models for regular and system boilers, Halo Air for the Logic Air heat pump, and the simpler Halo Lite and RF Electronic Thermostat for social housing and straightforward replacements².

The commercial point for a householder is compatibility. Ideal states plainly that Halo is only compatible with Ideal boilers, and that it does not recommend using the Halo controls range with anything other than an Ideal Heating boiler⁵. The range is therefore a decision made at the same time as the boiler, not a general-purpose smart thermostat that can be moved between brands.

On compliance, the Halo works with an Ideal boiler to provide enhanced load compensation, described by the maker as an energy efficiency measure recognised by the Boiler Plus legislation². Boiler Plus itself required increased minimum boiler efficiencies, time and temperature controls, and one additional energy efficiency measure chosen from weather compensation, a smart thermostat, flue gas heat recovery or load compensation⁷. The government's implementation status for the policy is recorded as implemented⁸.

The Halo range: thermostats, timers and accessories

Ideal's control catalogue covers thermostats, timers and accessories for the full range of Ideal boilers and heat pumps, and the company describes offering a range of time and temperature controls including the Ideal Halo RF¹. The range is not one product with variants so much as a set of controls matched to different appliances and different levels of ambition.

At the simple end sits the RF Electronic Thermostat, a radio frequency digital timer providing heating and hot water control through a simple user interface, with room temperature control, wireless communication, built in frost protection and holiday mode⁴. It is described as Boiler Plus compliant⁴. The Halo Lite and Halo Lite RF sit alongside it: the Halo Lite RF is a single zone combi programmable room thermostat designed to benefit both landlords and tenants, and the Halo Lite is compatible with current Logic combi boilers³.

The main Halo family then divides by system type. Halo Heat and System RF is a wireless programmable room thermostat designed specifically to work with an Ideal boiler, offering simple and easy heating and hot water control¹. Halo Heat and System Wi-Fi adds app control, and a separate 2-zone extension kit is available for two-zone homes¹³. On the combi side, the Halo Combi RF and Halo Combi Wi-Fi cover combination boilers, with the Wi-Fi version described as an internet connected wireless programmable room thermostat designed to work specifically with an Ideal boiler².

Installation across the range is consistent: Ideal describes the Halo boiler thermostats as wireless, fast and simple to install, on a plug, pair and play basis⁹. The user guide comes with the Halo and is also published online¹⁵.

Halo models compared

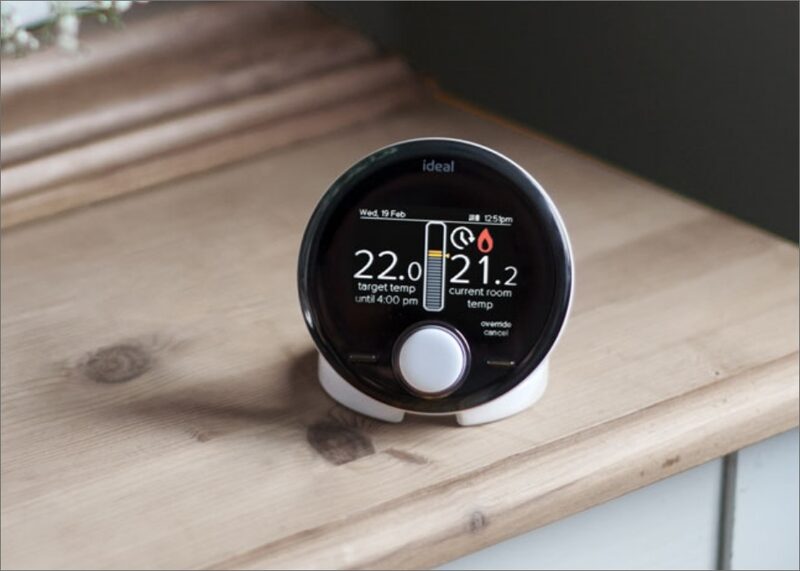

The differences between the models come down to appliance type, zoning and whether the control talks to the internet. Halo 2 is a wireless programmable room thermostat specifically designed to work with Ideal boilers, providing simple and easy heating and hot water control, with user-friendly controls and a connection to the Halo app over Wi-Fi¹⁶. Halo Air is a programmable room thermostat designed and developed to work seamlessly with the Logic Air monobloc heat pump, providing flexible control of heating and hot water¹⁰.

Zoning is handled separately. The Halo Heat and System 2-Zone Extension is compatible with Ideal boilers and carries a 2 year warranty and Smart Support from Ideal Customer Service¹⁴. For combi systems, the 2-zone kit is in addition to either the Halo Combi RF or, for internet connected control, the Halo Combi Wi-Fi⁶. Multi-zone control through the app is not currently available, with Ideal stating the option is in development¹⁵.

Wireless control: what RF means in practice

Radio frequency control separates the room thermostat from the boiler electrically. The Halo Combi RF is a wireless programmable room thermostat providing simple, easy-to-use heating control, and the Halo kit includes a Smart Interface that plugs directly into the front of the boiler and communicates wirelessly with the thermostat⁹. Ideal describes the installation as fast and simple, with no wiring: plug, pair and play².

That matters for retrofit. A wired room thermostat needs a cable run back to the boiler or wiring centre, which is disruptive in a finished house and is the usual reason a neutral conductor becomes an issue on a replacement control. The RF approach removes that run entirely, because the boiler end is a plug-in interface rather than a terminal connection. The trade-off is that the thermostat needs its own power source and a radio link that has to be paired, and the control is tied to the maker's interface rather than to a standard wiring plan.

The RF Electronic Thermostat follows the same logic at a simpler level, providing heating and hot water control through a simple user interface with wireless communication⁴. For households in rented or social housing, the Halo Lite RF is explicitly positioned as a single zone combi control designed to benefit both landlords and tenants¹.

Boiler Plus compliance and efficiency in practice

Boiler Plus set increased minimum efficiencies for boilers, required time and temperature controls, and required an additional energy efficiency measure, chosen from weather compensation, a smart thermostat, flue gas heat recovery or load compensation⁷. The policy's implementation status is recorded as implemented⁸. Load compensation is the measure Ideal's Halo controls provide.

Ideal states that the Halo works seamlessly with an Ideal boiler to provide enhanced load compensation, an energy efficient measure recognised by the Boiler Plus legislation². The Halo Lite is described as providing enhanced load compensation for Boiler Plus compliance, and the Halo Lite RF and Halo Combi RF are described as providing easy Boiler Plus compliance through load compensation³. At appliance level, Ideal states that the Logic2 Combi, when combined with Halo, which has enhanced load compensation, fulfils Boiler Plus requirements for replacement combis¹⁷.

What load compensation does in practice is modulate the boiler's output against the difference between the setpoint and the measured room temperature, rather than firing at a fixed flow temperature until the room thermostat is satisfied. That is the mechanism behind the compliance claim, and it is why the control has to be matched to the boiler: the compensation depends on the boiler accepting a modulating signal. The wider context for this control type is set out in load compensation and modulation and weather compensation.

Compatibility: Ideal boilers and heat pumps

Compatibility is the constraint that shapes the whole range. Ideal states that Halo is only compatible with Ideal boilers, to ensure the greatest efficiency out of the central heating system, and that it does not recommend using the Halo controls range with anything other than an Ideal Heating boiler, because savings would not be the same with another manufacturer's boiler⁵. The Halo Combi Wi-Fi works with an Ideal boiler, and the Halo Combi RF is designed specifically to work with an Ideal boiler⁹.

Within that boundary the coverage is broad. Ideal provides thermostats, timers and accessories for the full range of Ideal boilers and heat pumps¹. Combi boilers are compatible with Ideal Heating's Halo thermostats¹⁸. The Halo Heat and System Wi-Fi and the 2-Zone Extension are both listed as compatible with Ideal boilers¹³. The Logic2 Combi is compatible with the Halo Lite and RF programmable room thermostats¹⁷.

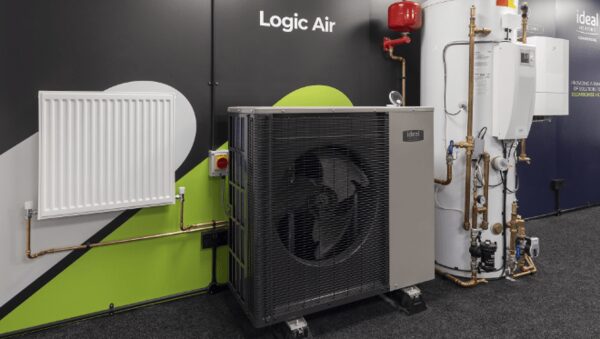

On the heat pump side, Halo Air is the matching control. Independent product listings describe the Logic Air heat pump range as supplied with a connected Halo Air room thermostat, and the models as partnered with Ideal Heating's pre-plumbed hot water cylinder and connected Halo Air room thermostat¹⁹. The Halo Air is a programmable room thermostat designed and developed to work seamlessly with the Logic Air monobloc heat pump¹⁰.

For households considering a change of heat source, independent guidance notes that heat pump and hybrid controls can be fitted to different heat sources and boiler types such as regular or combination boilers²². That is a general statement about control categories rather than about Halo specifically, and it does not override the maker's own compatibility position. The broader picture is covered in smart thermostat boiler compatibility.

The Extended Warranty and what it covers

Ideal's Extended Warranty is an optional subscription or one-off payment giving extended warranty cover for an Ideal heat pump system, and plans are available to purchase for both in warranty and out of warranty products¹¹. The warranty covers any Ideal Heating equipment installed as part of the system, and the covered list includes the Ideal heat pump outdoor unit, the Ideal heat pump control unit, the Ideal pre-plumbed unvented hot water cylinder and associated components, and Ideal Halo thermostats and controls¹¹.

There is no fixed limit on callouts or repairs, provided the fault is covered under the terms of the warranty¹¹. Response times may vary depending on demand, location and the nature of the fault²⁴. On length, the maximum extended warranty term is stated as 7 years for the HP290²⁴.

The exclusions are worth reading before relying on the cover. The Extended Warranty does not cover non-Ideal equipment or third-party components, installation defects or system alterations, accidental, cosmetic or malicious damage, failure to complete annual servicing, general household issues outside the heat pump system, or damage from flooding or extreme weather unless explicitly stated in standard warranty terms¹¹.

Separately, Ideal offers a Lifetime Warranty providing ongoing warranty cover for as long as the Ideal heat pump system remains installed in the property and the plan is paid for, kept valid by maintaining the subscription and allowing an annual service²⁵. It covers the Ideal Heating supplied parts of the system, which may include the heat pump outdoor unit, the heat pump control unit, the pre-plumbed unvented cylinder and its associated components, and Halo controls²⁶. The Lifetime Warranty is stated to include the Logic Air heat pump, the Ideal heat pump cylinder and the Halo Air thermostat²⁵.

Holiday mode and everyday settings

Holiday mode appears across the range. The Halo Lite has a holiday mode to switch off the heating for a preset period without altering the schedule, and the Halo Lite RF datasheet confirms holiday mode is included³. The Halo Combi RF lists flexible scheduling, override, plus hours, fault notifications, holiday mode and child lock². The RF Electronic Thermostat includes holiday mode as well⁴.

The scheduling depth is six heating schedules per day⁵. Ideal states that there is currently no Night Set Back feature on the Halo, but that with six heating schedules per day there is the flexibility to add additional on periods with a lower setpoint to compensate⁵. In other words, the setback behaviour is built by the householder through the schedule rather than offered as a single named setting.

The Halo comes with a preset schedule, altered in the Timed Heating Schedules section of the menu⁹. The Halo Lite adds a manual mode to disable the schedule and control temperature with the dial³. App setup runs through the Ideal Halo app, downloaded from the appropriate app store, which guides the user through linking the control¹⁵.

Smart control, app dependence and the retrofit question

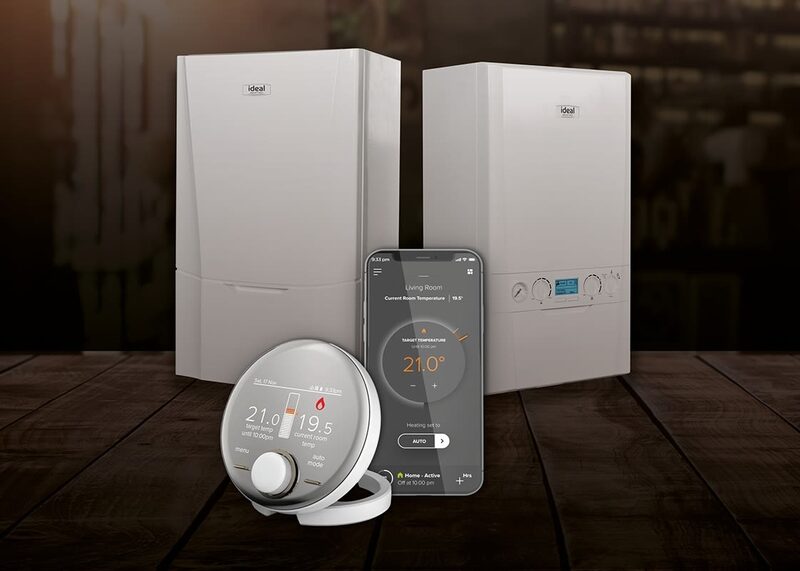

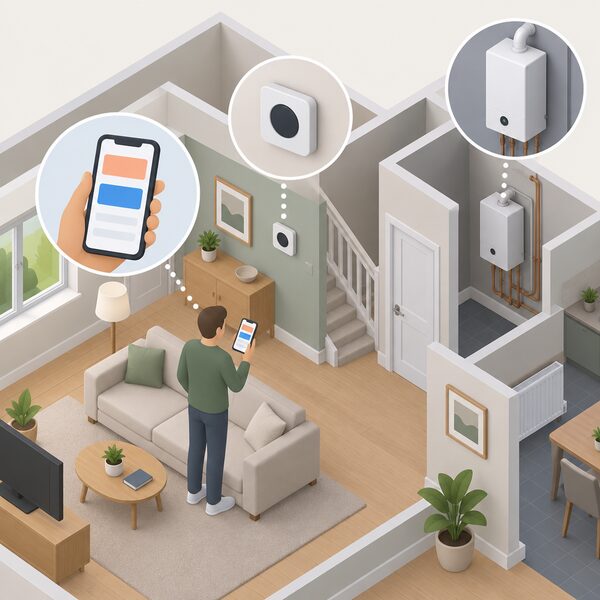

The Wi-Fi models add remote control and automation. Halo Heat and System Wi-Fi allows heating control anytime and anywhere through the flexible and intuitive Halo app, and provides flexible control of heating and hot water through that app¹. Halo Combi Wi-Fi works with an Ideal boiler to allow flexible control of heating with the Halo app, which can be connected to smart devices². Ideal describes the Halo Wi-Fi as a smart control with automation and optimisation¹².

Voice control is available on the Halo Wireless Thermostat: linking the Ideal Halo skill in the Alexa app enables control of the Halo device through Alexa, and the control can connect to Google Home or Alexa to adjust boiler temperature through verbal commands²⁷. The Halo wireless thermostat also includes a geolocation feature that senses where the household is and can automatically turn the heating off when everyone is out and on again when it detects someone is on the way home²⁸.

This is where the dependence sits. A smart thermostat connects to Wi-Fi, which allows it to form part of a more connected home heating system²⁹. Remote scheduling, automation and geolocation all depend on a working home broadband connection, the maker's app and the maker's service. Local control at the thermostat continues without any of that, but the features that justify the Wi-Fi premium do not. The wider trade-off between local control and cloud dependence is examined in heating controls and energy independence, and the data and support questions in smart heating control security and data.

On the retrofit question, the Halo Combi RF needs no wiring at all: the Smart Interface plugs directly into the front of the boiler and communicates wirelessly². That is the practical answer for a house with no spare conductor at the thermostat position. Independent guidance on smart thermostats notes that some models offer self or professional installation, so the installation route varies by product²⁷. For a household weighing a wireless control against a wired one, wired vs wireless room thermostats sets out the differences.
